A garden room you can use in January needs insulation in the walls, the roof and the floor, a vapour control layer on the warm side, and windows that don’t leak the heat straight back out. Rigid PIR boards are the usual choice because they give the most warmth for the least thickness. Done well, the insulation costs a fraction of the whole build. Done badly, it causes damp and rot that cost far more to put right.
We build extensions and garden rooms across Warrington, St Helens, Wigan and the surrounding North West towns, and insulation is where we see the biggest gap between a room that looks finished and one that actually works. This guide explains what to use, how thick, in what order, and what to budget.
TL;DR
- Insulate all three surfaces together: walls, roof and floor. A well-insulated roof with a bare floor still feels cold underfoot.
- Rigid PIR foam is the space-saver. Industry guides put 100mm boards at around £20 to £40 per square metre, with a U-value of roughly 0.18 to 0.22 W/m²K.
- The vapour control layer matters as much as the insulation. It goes on the warm (inside) face, and every joint must be taped.
- Most garden rooms under 30 square metres are exempt from building regulations, but only if there is no sleeping accommodation. Build to a good standard anyway.
- Budget for the extras: a power cable from the house can add £400 to £1,500.
Table of Contents
- Why insulation decides whether you use the room
- The main insulation materials compared
- Insulating each part of the room
- The vapour control layer: the step people skip
- Do you need building regulations approval?
- What it costs
- Common mistakes we see
- Our perspective
- Planning a garden room with us
- A sensible order of work
- FAQ
- Sources
Why insulation decides whether you use the room
An uninsulated timber or block garden room behaves like a shed with nice windows. It is cold in winter, stuffy in summer, and damp in the shoulder seasons. Insulation slows heat loss, so a small heater can hold a comfortable temperature instead of running flat out.
The benefit is not just comfort. One 2026 industry guide claims heating bills can fall by up to 60% compared with an uninsulated structure. Treat that as an upper figure rather than a promise, because it depends on the room’s size, glazing and how you heat it. What is certain is that a warm, dry room is one you will actually use, whether it is a home office, a gym, a playroom or a quiet reading space.
If you are still deciding what kind of building you want, our guide on what a garden room extension is covers the options, and our comparison of a garden room versus a conservatory helps if you are weighing up a glazed alternative.
The main insulation materials compared
There are three types you will hear about from most suppliers and installers. Each has a place.
| Material | Typical cost | Strengths | Watch out for |
|---|---|---|---|
| Rigid PIR foam boards | £20 to £40 per m² for 100mm | Best performance for its thickness, so thinner walls and more floor space | Needs careful sealing at joints and edges |
| Mineral wool | £10 to £20 per m² | Cheaper, easy to fit between studs | Needs 140mm or more to match 100mm of PIR, so walls get thicker |
| Natural fibre (wood fibre, sheep’s wool) | Varies by product | Handles moisture and summer heat well | Needs much thicker walls for the same U-value |
The cost and thickness figures above come from the same 2026 guide. The same source notes that natural fibre boards are increasingly chosen by people who want to manage summer heat gain and moisture more naturally, while PIR wins when every centimetre of floor space counts.
Our view is practical. In most North West gardens, where the room is small and the winters are damp, PIR between the studs with a further layer across them is the best balance of performance, wall thickness and cost. Natural fibre is a perfectly good choice if you are happy to give up some internal space for it.
What a U-value tells you
A U-value measures how quickly heat passes through a wall, roof or floor. Lower is better. When a supplier quotes 0.18 W/m²K for a wall, they are saying it loses very little heat for each square metre. If a quote does not give U-values for the walls, roof and floor separately, ask for them. It is the simplest way to compare like with like.
Insulating each part of the room
Walls
For a timber-framed room, the usual build-up from outside to inside is:
- Cladding or render finish.
- A ventilated gap behind the cladding.
- A breathable membrane over the sheathing, which keeps rain out but lets moisture escape.
- The timber frame, with insulation fitted tightly between the studs.
- A further layer of rigid board across the studs where space allows, to reduce heat escaping through the timber itself.
- A vapour control layer, taped at every joint.
- Plasterboard or timber lining.
Gaps are the enemy. Insulation that is cut loosely, or boards that stop short of a corner, create cold spots where moisture collects. Patience at this stage pays for itself.
Roof
The roof loses the most heat in a small building, because warm air rises. A flat roof usually has insulation above or between the joists, with ventilation arranged to suit the design. A pitched roof takes insulation between the rafters with a vapour control layer beneath. Skylights and roof lanterns look lovely but are thermal weak points, so choose good quality units and have them fitted properly.
Floor
People often forget the floor, then wonder why the room feels cold even with the heating on. A raised timber floor can take insulation between the joists, with a breathable layer below to keep the insulation dry. A concrete slab needs rigid insulation below it or above it, with a damp-proof membrane. If you are retrofitting an existing base, raising the floor height slightly by laying boards on top is often the simplest fix.
Windows and doors
Glazing is the part of the envelope that loses heat fastest. Double glazing is the minimum for year-round use, and large bi-folding or aluminium patio doors need to be specified with thermally broken frames. We supply and fit replacement windows and doors, so we can plan the glazing and insulation as one job rather than leaving gaps between trades.

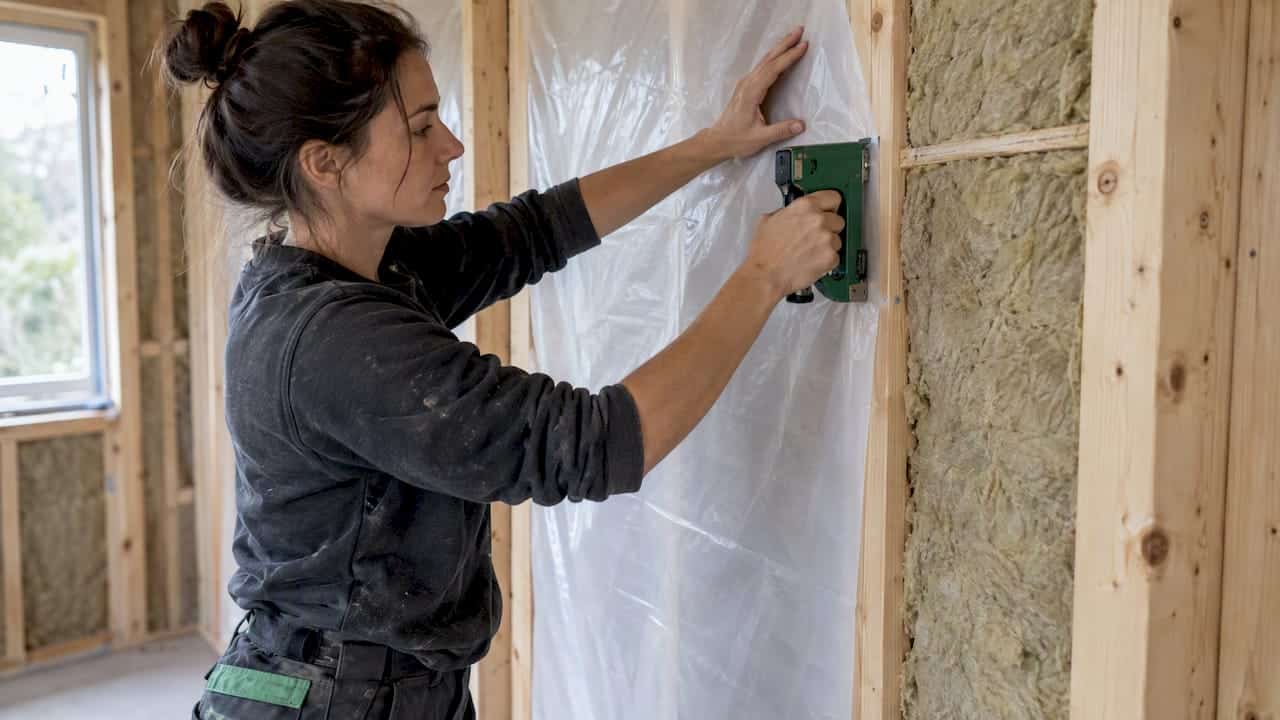

The vapour control layer: the step people skip
If you remember one thing from this page, make it this. Warm indoor air carries moisture. Without a vapour control layer on the warm side of the insulation, that moist air reaches the cold outer structure and condenses. Over a few seasons, that can rot timber and grow mould.
The research behind this is consistent. One industry guide cites condensation as the most common reason garden rooms fail, and says a poorly protected build can lose 30% or more of its insulating performance as the material gets wet.
Three practical rules follow:
- Put the vapour control layer on the inside face of the insulation, never the outside.
- Tape every overlap and seal around sockets, pipes and window reveals.
- Keep a ventilated gap and a breathable membrane on the cold outer side, so any moisture that does get in can leave.
Do you need building regulations approval?
Often you don’t, but the rule is narrower than many people think. According to the Planning Portal, an outbuilding with a floor area under 15 square metres and no sleeping accommodation does not normally need approval. Between 15 and 30 square metres, approval is not normally needed if there is no sleeping accommodation and the building is either at least one metre from any boundary or built substantially of non-combustible materials.
A garden room with a bed in it is different. Sleeping accommodation typically brings full building regulations into play whatever the size, and the energy rules in Approved Document L, which supports Part L of the Building Regulations 2010, then become a legal requirement rather than a good idea.
Even where you are exempt, we recommend building to the same standard. Exempt does not mean the room will stay dry. For a closer look, see our guide to garden room building regulations.
Planning permission
Insulation itself needs no planning consent, but thicker walls and roof build-ups add height, and height is where people trip up. Under permitted development, an outbuilding within two metres of a boundary can’t exceed 2.5 metres in height. Dual-pitched roofs can reach 4 metres and other roof types 3 metres, and outbuildings cannot sit forward of the original house’s principal elevation. Those rules cover incidental garden buildings, not self-contained living accommodation.
The extra 100mm of roof insulation can be the difference between 2.5 metres and a planning application, so settle the design before you order materials. Our North West garden room planning guide and our explainer on permitted development versus planning permission go through the checks.
What it costs
Insulation is one of the better-value parts of the build. The same industry guide puts a full insulation upgrade at roughly £1,500 to £4,000 on top of the base cost of a garden room. The range reflects room size, material and how much of the floor, walls and roof you are treating.
For the whole project, a 2026 cost guide puts fully insulated, year-round garden rooms at £1,200 to £2,500 per square metre, with most builds between £1,700 and £2,200. These are national averages. Your price will depend on access, groundwork, glazing and finish.
Costs people forget
- Power supply. The same cost guide says an armoured cable run from the house often adds £400 to £1,500 and is frequently left out of first quotes.
- Heating. A small electric panel or an efficient wall-mounted unit is usually enough in a well-insulated room.
- Ventilation. A trickle vent or extractor keeps indoor air healthy and protects your insulation. Our guide on how garden rooms are connected to homes explains the services side.
We do not publish set prices for garden rooms, because every garden, spec and set of services is different. We give a fixed-price quotation once we have seen your site.
Common mistakes we see
- Insulating the walls only. Roof and floor losses then dominate, and the room never warms through.
- Leaving out the vapour control layer, or not taping it. This is the commonest cause of damp.
- Using foil-faced boards without sealing the joints. The performance on the box only applies if the boards are airtight.
- Compressing mineral wool. Squashed insulation does less work than the thickness suggests.
- Choosing glazing last. Big, cheap glass undoes good insulation elsewhere.
- Forgetting the height limit. Extra build-up pushes the room over 2.5 metres near a boundary.
- Ignoring summer. A very airtight room with large south-facing glass overheats. Think about shading, opening vents and, if needed, fibre insulation that buffers heat.
Our perspective
We have been building for more than 35 years, and the pattern is always the same: the owners happiest with their garden room years later are the ones who paid attention to the parts they could not see. Insulation, membranes, tapes and ventilation do not photograph well, but they decide whether the room is a pleasure or a disappointment.
We would rather talk you out of a cheaper build-up that will cause damp than win a job on the lowest figure. That is why we plan the insulation, glazing, services and finishes together, manage the project from design to completion, and give you a fixed-price quotation you can rely on. For homes in Warrington, Great Sankey, Penketh, Culcheth, Lowton, Rainhill, Haydock and beyond, our advice is simple: spend a little more on the envelope and a little less on the extras. You will feel the difference every winter.
— Gareth
Planning a garden room with us
We design and build garden rooms and HUP extensions, and we are an approved HUP! Building System partner. We also handle the glazing, doors and structural work around them, so one team looks after the whole job. See our garden room and HUP extension service, or get in touch for a conversation about your garden and what you want to use the room for.
If your idea is closer to turning an existing space into a warm room, our garage conversion service follows the same insulation principles, and our guide to garage conversion insulation and Part L shows how they apply there.
A sensible order of work
- Confirm size, height and position against the planning and building rules.
- Agree the specification: U-values for walls, roof and floor, plus the glazing.
- Prepare the base and services route.
- Build the frame and fit the breathable membrane.
- Install insulation, then the vapour control layer, taping every joint.
- Fit windows and doors, and make them airtight to the frame.
- Line the walls, finish the floor and commission heating and ventilation.
For a modest room, the construction itself normally takes a matter of weeks rather than months once groundwork is done, though weather, glazing lead times and the services route can shift that. We will give you a realistic programme at quotation.
FAQ
How thick should garden room insulation be?
It depends on the material. Around 100mm of PIR typically reaches a U-value of 0.18 to 0.22 W/m²K, while mineral wool needs 140mm or more to match it. The roof usually needs the most, so plan wall and roof thicknesses together and check the height limit.
What is the best insulation for a garden room?
For most rooms, rigid PIR boards give the best performance for the thickness, which keeps walls slim and floor space generous. Natural fibre boards suit owners who want better moisture and summer heat handling and accept thicker walls. Whichever you choose, the vapour control layer and airtight joints matter as much as the material.
Can I insulate an existing garden room or shed?
Yes, usually from the inside. Strip the lining, fit insulation between and across the studs, add a taped vapour control layer and re-line. Check first for damp or rot in the frame, because insulating over a wet structure will trap the problem.
Does insulating a garden room need building regulations approval?
Not in itself. Approval is generally not required for outbuildings under 15 square metres with no sleeping accommodation, or between 15 and 30 square metres when the boundary or materials conditions are met, according to the Planning Portal. If anyone will sleep in the room, expect full approval. Your local building control team can confirm for your address.
How much does it cost to insulate a garden room?
A full insulation upgrade is typically quoted at around £1,500 to £4,000 in 2026 industry guidance, depending on size and materials. Add £400 to £1,500 if the power cable run is not already included in your quote.
