A window’s U-value measures how much heat escapes through it, expressed in watts per square metre per kelvin (W/m²K). Lower numbers mean better insulation, so when comparing quotes, we always recommend checking the whole-window U-value and the Window Energy Rating (WER), not just the glass. Part L sets the regulatory benchmark every replacement window must meet.
TL;DR:
- Homeowners should request the whole-window U-value and verify if it comes from a recognized test method, as it provides a true performance measure.
- Modern double or triple glazing with a U-value at or below 1.4 W/m²K and a Window Energy Rating of band B or higher generally meets current building regulations.
- Windows installed with poor sealing, gaps, or incorrect fitting can negate the benefits of high-performance glazing, emphasizing the importance of proper installation.
- For cost-effective improvements, secondary glazing or resealing often offers significant benefits compared to full window replacements.
- Extensions exceeding 25% glazed area require area-weighted U-value calculations or SAP assessments to demonstrate compliance with regulations.
Table of Contents
- What a U-value actually measures
- Typical U-values for single, double and triple glazing
- What counts as a good U-value today
- How to check a window’s U-value before you commit
- Why the U-value affects your comfort and your bills
- Realistic ways to improve your windows
- Planning rules you need to know before replacing windows
- What we’ve learned from years of fitting windows
- Replacing windows or glazing an extension the right way
- FAQ
- Sources
What a U-value actually measures
A U-value tells you how quickly heat passes through a material, measured in watts per square metre per kelvin. The lower the figure, the slower the heat escapes, and the better the window performs at keeping warmth inside your home.
Here’s where homeowners often get caught out: a “centre-pane” U-value only measures the glass in the middle of the window, ignoring the frame and edge seals. A “whole-window” U-value accounts for the entire unit, frame included, and is almost always the higher, more honest figure. According to Energy Saving Trust, checking the whole-window figure rather than a centre-pane number is the only way to compare quotes fairly.
- Centre-pane U-values look impressive on marketing material but rarely reflect real performance.
- Whole-window figures include frame material, spacers and seals, giving a true picture.
- Testing follows hot-box methods or calculation routes set out in recognised British Standards.

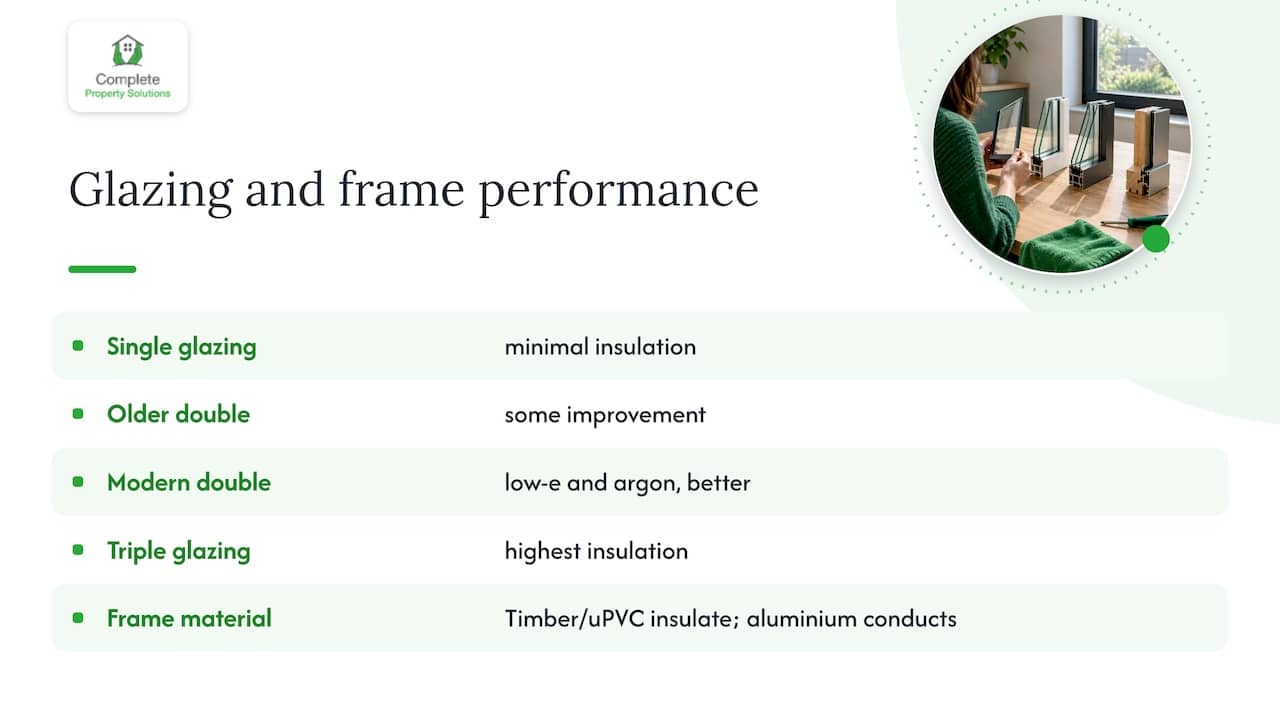

Typical U-values for single, double and triple glazing
Window performance varies enormously depending on age and construction, which is why an older double-glazed unit can perform little better than you’d expect from a well-sealed single pane with secondary glazing added.
Window performance varies considerably depending on age and construction. Single glazing offers minimal insulation, older double glazing provides some improvement, modern double glazing with enhancements such as low-emissivity coatings and argon fill performs better, and triple glazing offers the highest insulation among common types.
Frame material matters just as much as the glass. Timber and modern uPVC frames insulate well, aluminium conducts heat quickly unless thermally broken, and a thermally broken aluminium frame closes most of that gap. Figures vary between manufacturers and test methods, so always ask for the specific rating of the product you’re being quoted, not a generic industry average.
What counts as a good U-value today
Current Building Regulations guidance in Approved Document L sets the benchmark for replacement windows in existing homes, with a target of 1.4 W/m²K or Window Energy Rating band B as the recognised standard for compliant replacements. That single figure is the one most homeowners in Warrington, St Helens or Wigan should keep in mind when comparing quotes for replacement windows.

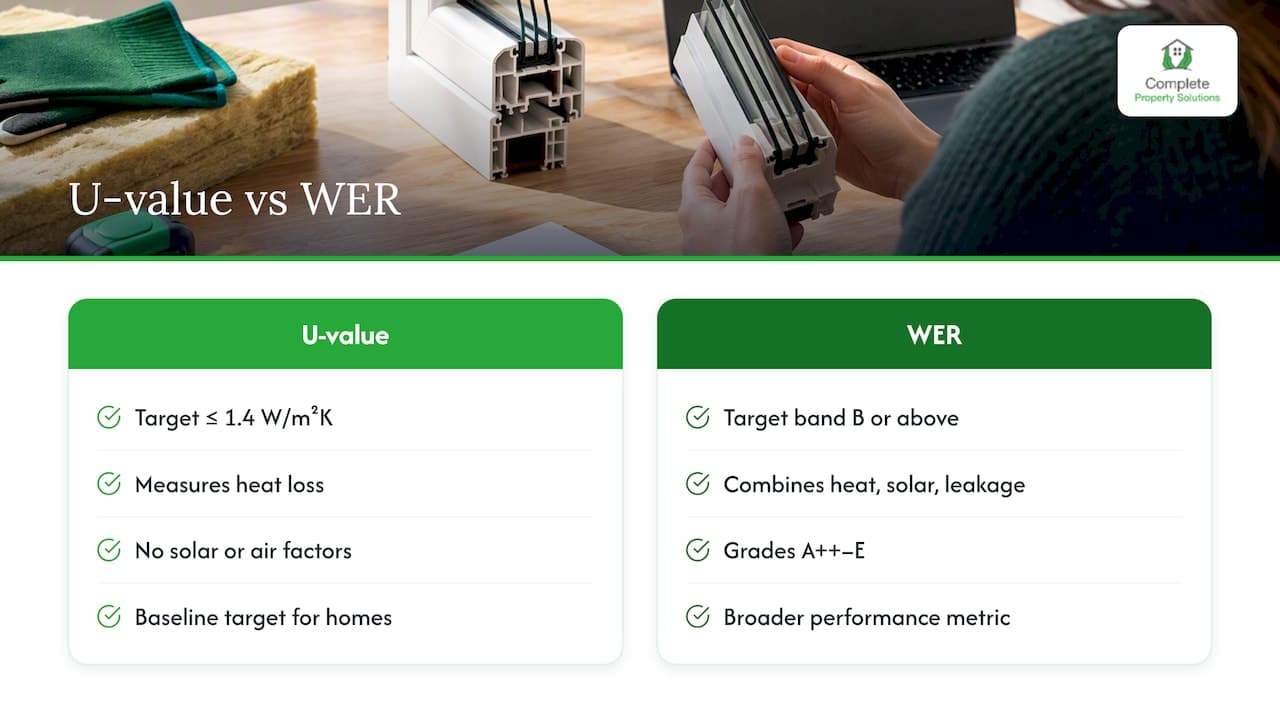

WER offers an alternative way to judge performance, bundling U-value together with solar gain and air leakage into a single letter grade from A++ to E. For most homeowners, a WER band of Bs or above, alongside a whole-window U-value at or below 1.4 W/m²K, is a sound practical target for replacement glazing. Triple glazing or premium aluminium systems can push comfortably below that, but for most semi-detached and terraced properties across the North West, meeting the Part L benchmark is the sensible baseline rather than the ceiling.
How to check a window’s U-value before you commit
Checking the right figure takes a few minutes and saves a lot of disappointment later. Here’s what we’d ask for on any quote:
- Request the whole-window U-value, not a centre-pane figure, in writing on the quotation.
- Ask whether the figure comes from a hot-box test or a calculation to recognised standards.
- Check the Window Energy Rating band alongside the U-value for a fuller picture of performance.
- Confirm the installer’s FENSA or Building Regulations competent person scheme registration.
- Ask about warranty length and who carries out the actual installation.
Pro Tip: If two quotes show the same U-value but very different prices, ask each installer to confirm whether the figure is whole-window or centre-pane. It’s the most common source of confusion we see.
Why the U-value affects your comfort and your bills
A lower U-value means your home loses heat more slowly, which translates directly into a warmer, more even temperature through the colder months and less draught near the glass. Energy Saving Trust notes that Window Energy Rating is often more useful than U-value alone, since it also accounts for solar gain and air leakage, two factors that affect real comfort just as much as raw heat loss.
Here’s the catch: even an excellent U-value window underperforms if it’s fitted badly. Gaps around the frame, poor sealing or skipped trickle vents can let draughts undo much of the benefit, which is why draught-proofing and correct installation matter as much as the glazing spec itself.
Realistic ways to improve your windows
Not every home needs a full replacement to see a difference. We generally talk homeowners through three routes.
- Full replacement with modern double or triple glazing gives the biggest improvement but costs the most, typically from around £400 to £1,200 per window depending on size and frame material.
- Secondary glazing adds a second pane inside an existing frame, a popular choice for period properties where the original windows must stay in place.
- Draught-proofing and resealing cost far less, often under £150 per window, and can noticeably reduce draughts even without touching the glazing itself.
Pro Tip: Before paying for full replacement, ask an installer to check whether resealing or secondary glazing would solve most of the problem for a fraction of the cost.
Planning rules you need to know before replacing windows
Replacing windows in an extension or adding a large glazed area can trigger extra paperwork. CNC Building Control explains that many extensions are limited to 25% glazed area relative to floor space, and exceeding that threshold means demonstrating equivalent energy performance through area-weighted U-value calculations or a SAP assessment.
- Extensions over the 25% glazing limit usually need a calculation showing compensatory thermal performance elsewhere.
- Listed buildings and conservation areas often restrict replacement entirely, with Islington Council’s guidance recommending secondary glazing or slimline double glazing as sympathetic alternatives.
- Building control input is usually required whenever glazed area, structural openings or listed status are involved.
What we’ve learned from years of fitting windows
The most common error we see is homeowners comparing a centre-pane figure from one supplier against a whole-window figure from another, assuming they’re getting a better deal when they’re not. Good sealing and a properly registered installer matter just as much as the glass itself.
— Gareth
Replacing windows or glazing an extension the right way
We offer replacement windows, conservatory roof upgrades and extension glazing with quotes that include the whole-window U-value rather than only centre-pane figures.
- Quotations covering glazing, frames and installation, agreed before work starts.
- Building Regulations compliance handled as part of the project.
- Timescales discussed at quote stage to manage expectations.
If you’re planning a house extension with new glazing, replacement windows, or a conservatory roof upgrade anywhere across Great Sankey, Penketh, Culcheth, Lowton, Rainhill or Haydock, get in touch for a fixed-price quote that spells out the U-values in plain terms from the start.
FAQ
What is a good U-value for windows?
A whole-window U-value of 1.4 W/m²K or below, or a Window Energy Rating of band B or higher, meets current Part L guidance for replacement windows. Triple glazing or premium aluminium systems can go lower still, but this is the sensible baseline for most homes.
What is the 25% glazing rule?
According to CNC Building Control, exceeding that limit means showing equivalent energy performance through area-weighted U-value calculations or a SAP assessment.
Is a higher or lower U-value better for windows?
A lower U-value is always better, since it means less heat escapes through the window. This is the opposite of ratings like tog values for insulation, so it’s worth double-checking which direction “better” points for any given figure.
What is the U-value of a 20-year-old double glazing window?
Window performance varies considerably depending on age and construction, with single glazing offering minimal insulation and older double glazing providing some improvement. Modern double glazing with enhancements such as low-emissivity coatings and argon fill performs better, while triple glazing offers the highest insulation among common types. If your current windows are older double glazing, replacement or secondary glazing would bring a meaningful improvement.
